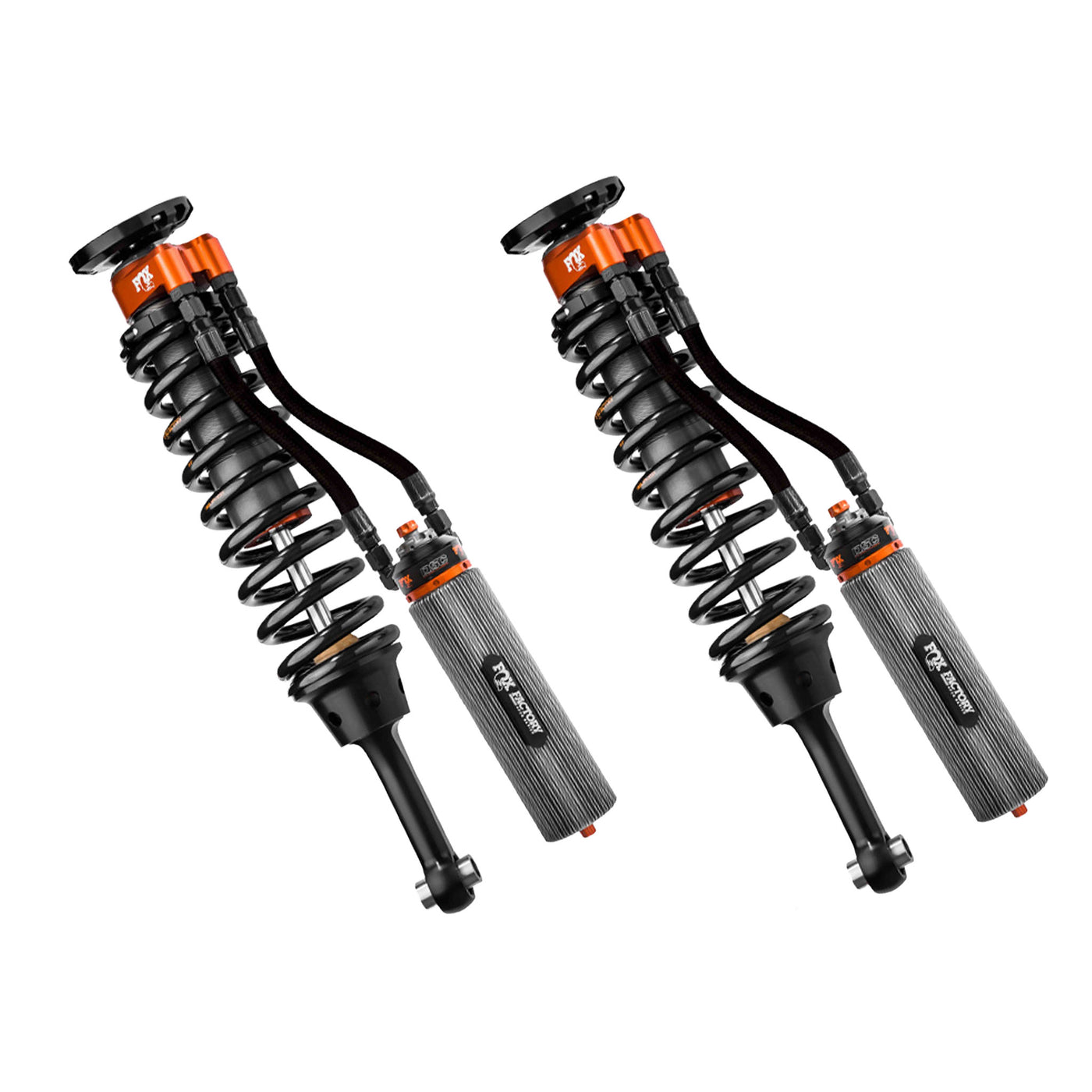

Fox 3.0 Coilovers | Internal Bypass | Finned Reservoir

Previous Product | Next Product
Overview

 Description

The 3.0” Fox Factory Series Internal Bypass Shocks for the Ford Raptor are direct bolt-on replacement shocks. Designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir. These position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock Raptor shocks.

 Specifications

  • Allows up to 2.5” of Lift
  • Remote finned reservoir with Recirculating Reservoir Bridge
  • Precision bored 3.0” diameter shock body
  • Allows for up to 25% increase in front wheel travel
  • Completely bolt in OEM replacement application

 What's Included

  • 3.0” Fox Internal Bypass Shock
  • External finned reservoirs w/ DSC adjuster
  • Teflon lined spherical bearings w/misalignments
  • All necessary mounting hardware
  • Installation instructions

  Features

Body 3.0" Hard anodized aluminum
External Reservoir NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
Components Hard anodized, CNC-machined 6061-T6 billet aluminum
Spring 3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
Shaft 7/8" 17-4 H900 hard chrome plated stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Specific for Gen 2 Raptor to maximize performance and comfort
Oil JM92 Advanced Suspension Fluid
Bearing Spherical, PFTE-lined, heat-treated steel
Mounting Heat treated steel spherical heim mounting
Adjustments
  • Dual Speed Compression (DSC) adjuster
  • Ride-height/spring preload ring

  Compatibility

2017-2020 Ford Raptor 4WD

Sku: 883-06-140
