Long Travel Kit

Overview

 Description

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!

 Specifications

  • Wheel Travel: 13.5”
  • Amount of Lift: 0-4”
  • Track Width: 3.5” wider per side
  • Maximum Tire Size: 35”
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
  • Coil over Shock Size: 2.5” x 8” (view spec sheet)
  • Bump Stop Size: 2.0” x 2.0” (view spec sheet)

Wheel Travel
In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop.

Tire Info
When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump.

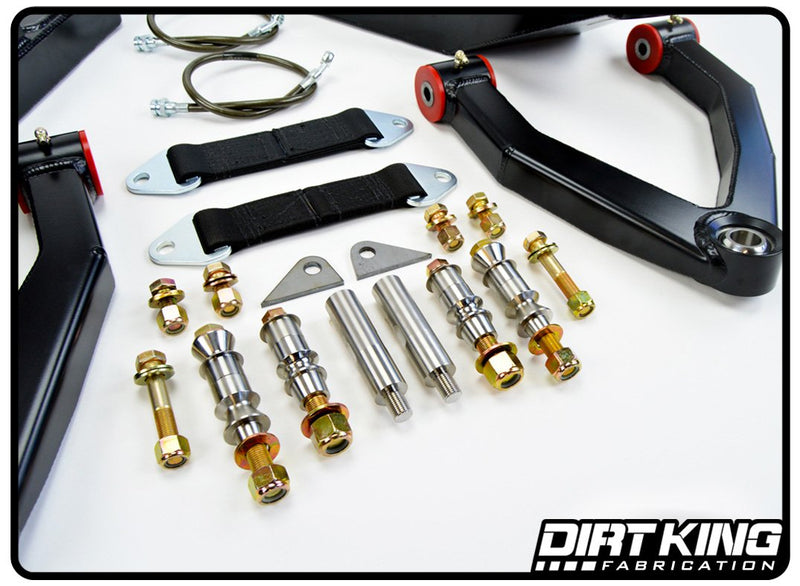

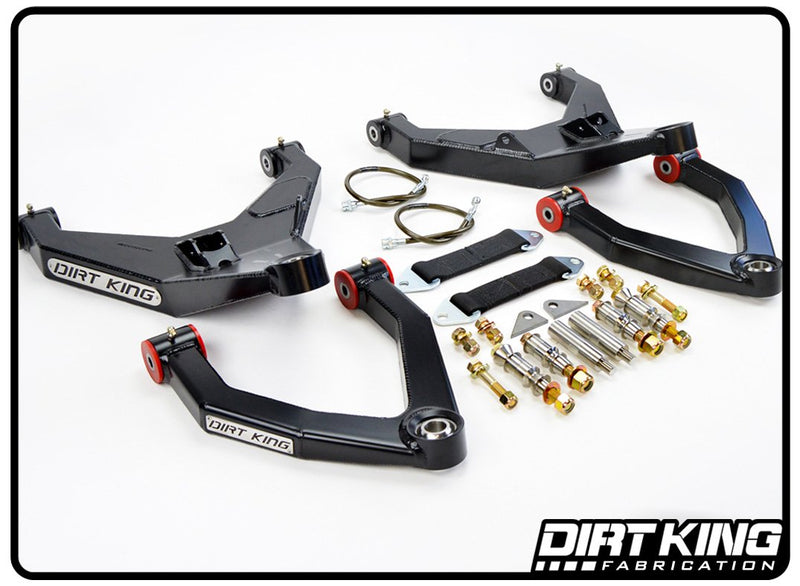

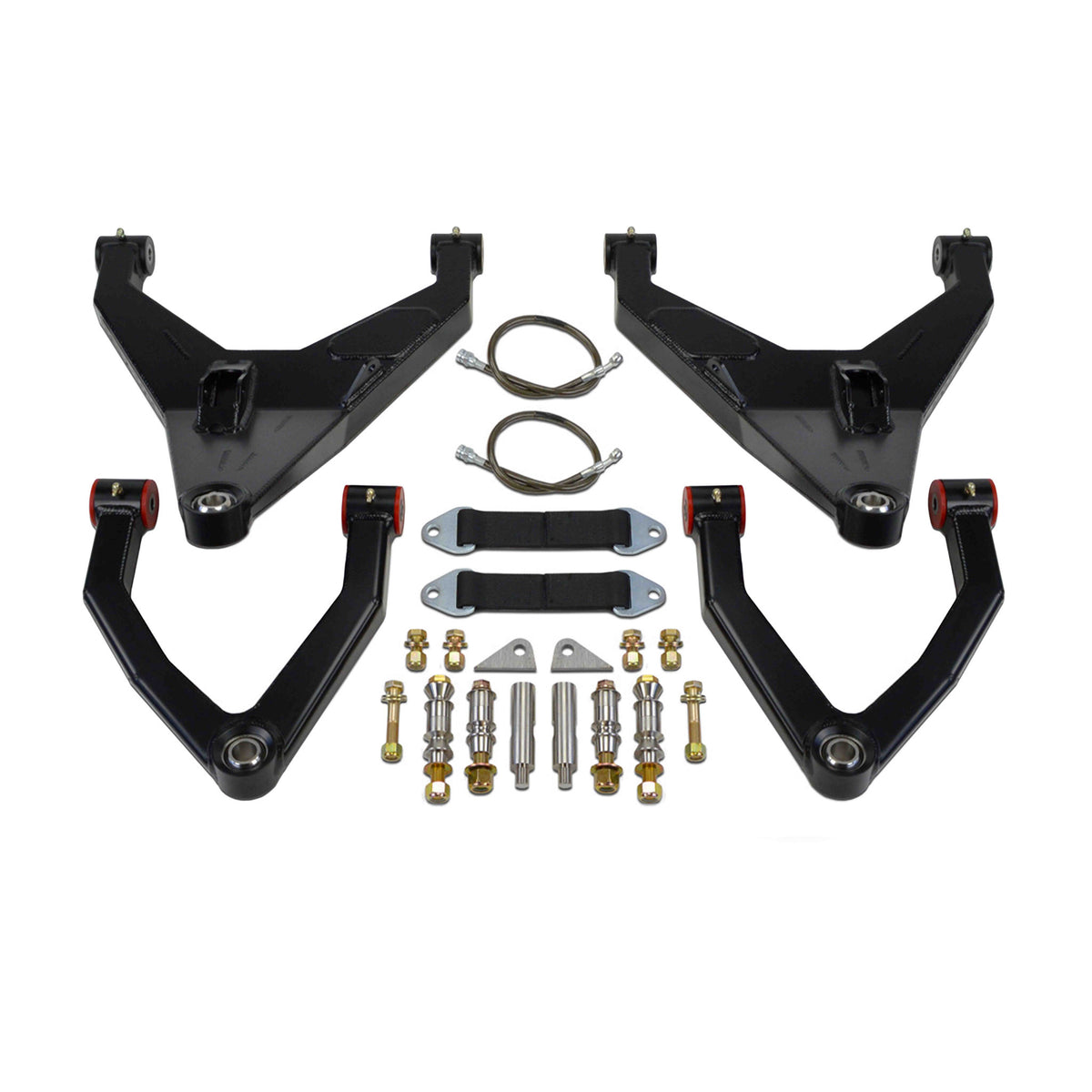

 What's Included

  • Boxed plate upper control arms
  • Boxed plate lower control arms
  • 9" quad wrapped limit straps
  • Weld on adjustable limit strap mounts
  • 17-4 stainless steel misalignment spacers
  • 17-4 stainless steel tie rod extensions
  • DOT approved extended brake lines
  • Grade 8 mounting hardware
  • FK bearings

  Features

  • Bolt on application, minimal modifications required
  • Utilizes American made FK bearings
  • 4130 chromoly uniball cups
  • Polyurethane bushings for the UCA’s
  • Delrin bushings for the LCA’s
  • Zinc plated inner bushing sleeves
  • Grease fittings for easy servicing
  • 3/16" and 1/8” boxed plate construction
  • Internally ribbed with extrusions for weight reduction
  • Bump stop plating
  • Limit strap tabbing

  Compatibility

2015-2022 Chevy Colorado 2WD
2015-2022 GMC Canyon 2WD
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
*Front fiberglass required.

Sku: DK-634908-B
Maximum quantity available reached.

Please view our shipping policy, exchange policy, and disclaimer information for details. If you would like more information or have any questions regarding our products,  feel free to contact us for assistance by visiting our contact page.

Shipping & Delivery
Dirt King ships their products within the United States and Internationally. Most products ship via UPS or USPS. Orders that exceed $500 require a signature confirmation. On bulk orders contact Dirt King for a freight quote. The customer is responsible for import taxes and fees on international shipments.

Damaged or Missing Parts
In an instance where you receive a damaged package a claim must be made with Dirt King. The claim can be submitted by sending an email to sales@dirtkingfabrication.com containing photos of the damaged packages and damaged products. The email must also include your order number as well. Do not discard any of the original packaging or try installing the products.

While every precaution is taken there could be a case where you are missing parts. If this happens please send an email to sales@dirtkingfabrication.com with your order number, list of missing parts, photo of the package or packages, and a photo of the quality control tag located on the back of the box.

If the shipping carrier losses your package please contact Dirt King. A claim will be filled with the shipping carrier. Unfortunately, we do not have much control over this situation and must wait for the carrier to process the claim.

Freight Shipping
The customer must contact Dirt King to arrange for freight shipping. Dirt King will palletize the order and the customer can deal directly with the freight carrier if preferred. The shipment can be delivered to a home or business. The customer must be present for the delivery to inspect and sign for the package. Before signing confirm that you received all items listed on the packing slip and nothing is damaged. If you receive damaged parts or are missing parts leave a note on the bill of landing and sign it. Make sure the driver is aware of the situation and signs your copy of the bill of landing with the noted damages or missing parts. Once you have taken possession of the package file a claim with Dirt King by sending an email to sales@dirtkingfabrication.com. Please include your order number, copy of your bill of landing, and photos of the damaged items or list of missing parts. Do not discard any of the original packaging or try installing the products. Dirt King will do everything possible to resolve the issue as quickly as possible.

Returns & Exchange
  • Returns are only accepted within 30 days.
  • Product must have been purchased from us and not a dealer.
  • A 3% processing fee is deducted from all refunds.
  • On shipped orders a 7% restocking fee and a 3% processing fee is deducted from all refunds.
  • Products such as bumpers, hitches, and bed cages that have optional powder coat added are subject to a 7% restocking fee and a 3% processing fee. If the order is canceled before the product is powder coated then the 7% restocking fee can be waived.
  • On shipped orders we are not responsible for return shipping or refunding the original shipping amount.
  • Parts must be returned in the original package and condition as they were sent.
  • No returns on items that have been damaged or installed.
  • Refund will be issued once the parts have been received and inspected.
  • Custom products are non refundable.
  • Crypto orders will be refunded the same coin amount that was paid originally.
Disclaimer

All products sold or manufactured by Dirt King are intended for off-road use only. Our products are strictly engineered and tested and are not to be modified from their original design in any way. Welding should always be done at a qualified and certified facility only. Customer assumes all liability in assuring that parts are installed correctly, maintained, and not modified or altered in any way. Dirt King is not responsible or liable for any accidents, injuries, or deaths that may occur from the use of any products offered. Suspension modifications may change the dynamics and stability characteristics of the vehicle. Ensuring prompt wheel alignment and ADAS recalibration after suspension modifications is critical and the sole responsibility of the customer.
